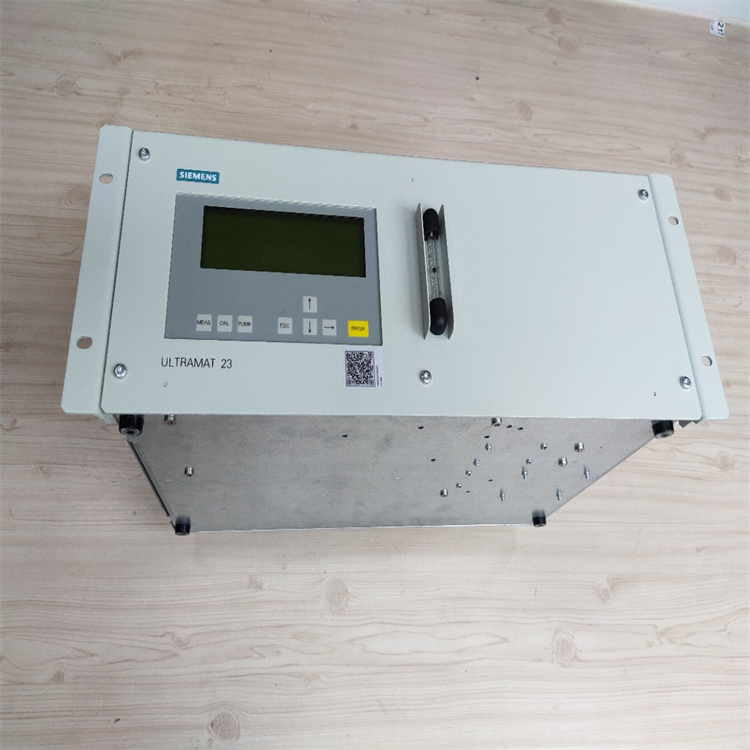

ULTRAMAT23 红外气体分析仪 – 真正的全能仪器

ULTRAMAT 23 是一款创新的多组分气体分析仪，可配备以下传感器：红外活性气体用红外检测器、紫外活性气体用紫外光度计、H2S 传感器（电化学）、O2 传感器（电化学或顺磁性），用于诸多应用和行业。集成自动标定功能（使用环境空气）是一项独特的优势。这意味着，每年只需要一次标定气体测试。纯文本菜单引导式操作能使用户和服务人员立即操作设备。根据日志中的信息可进行预防性维护。

多层检测器的高选择性

所用的多层检测器可保证高选择性并可减少水汽干扰。所用的样品气室坚固耐用，如因样品处理过程中出现的问题所导致的，可以轻松清洁。电化学氧传感器用于测定 O2 ，硫化氢传感器可将 ULTRAMAT 23 的应用范围扩展到沼气厂应用领域。在单个基本设备中额外使用电化学传感器和NDIR技术可节省样品制备和备件库存成本。

Paramagnetic-oxygen-sensor-for-ultramat-23-mS-HighRes.tif

技术规范

最大组分数量4

组分例如 CO, CO2, NO, SO2, CH4, O2, H2S

最小测量范围特定组分：0–50 / 0–500 vpm

外壳19 英寸机架式外壳

优势一览

低维护成本，因为无需使用标定气体（可利用环境空气自动标定，取决于测量组份）

由于多层检测器的高选择性，例如对水汽的低交叉灵敏性

可清洁样品气室：在受污染情况下可清洗，进一步使用可节省成本

纯文本菜单引导式操作

开放接口式架构（SIPROM GA）：简化系统集成；远程操作和控制

西门子分析仪主要常见型号如下：

7MB2335-0DF00-3AA1

7MB2335-0FF00-3AA1

7MB2335-0MF00-3AA1

7MB2335-0NF00-3AA1

7MB2335-0SF00-3AA1

7MB2335-0PF00-3AA1

7MB2335-0UF00-3AA1

7MB2335-0VF00-3AA1

7MB2335-0MW00-3AA1

7MB2335-0NW00-3AA1

7MB2335-0AF10-3AA1

7MB2335-0CF10-3AA1

7MB2335-0DF10-3AA1

7MB2335-0FF10-3AA1

7MB2335-0MF10-3AA1

7MB2335-0NF10-3AA1

7MB2335-0SF10-3AA1

7MB2335-0PF10-3AA1

7MB2335-0UF10-3AA1

7MB2335-0VF10-3AA1

7MB2335-0AX10-3AA1

7MB2335-0AG00-3AA1

7MB2335-0CG00-3AA1

7MB2335-0DG00-3AA1

7MB2335-0FG00-3AA1

7MB2335-0MG00-3AA1

7MB2335-0NG00-3AA1

7MB2335-0SG00-3AA1

7MB2335-0PG00-3AA1

7MB2335-0UG00-3AA1

7MB2335-0VG00-3AA1

7MB2335-0UW00-3AA1

7MB2335-0VW00-3AA1

7MB2335-0AG10-3AA1

7MB2335-0CG10-3AA1

7MB2335-0DG10-3AA1

7MB2335-0FG10-3AA1

7MB2335-0MG10-3AA1

7MB2335-0NG10-3AA1

7MB2335-0SG10-3AA1

7MB2335-0PG10-3AA1

7MB2335-0UG10-3AA1

7MB2335-0VG10-3AA1

7MB2335-0DW10-3AA1

7MB2335-0FW10-3AA1

7MB2335-0AH00-3AA1

7MB2335-0CH00-3AA1

7MB2335-0DH00-3AA1

7MB2335-0FH00-3AA1

7MB2335-0MH00-3AA1

7MB2335-0NH00-3AA1

7MB2335-0SH00-3AA1

7MB2335-0PH00-3AA1

7MB2335-0UH00-3AA1

7MB2335-0VH00-3AA1

7MB2335-0AW10-3AA1

7MB2335-0CW10-3AA1

7MB2335-0AH10-3AA1

7MB2335-0CH10-3AA1

7MB2335-0DH10-3AA1

7MB2335-0FH10-3AA1

7MB2335-0MH10-3AA1

7MB2335-0NH10-3AA1

7MB2335-0SH10-3AA1

7MB2335-0PH10-3AA1

7MB2335-0UH10-3AA1

7MB2335-0VH10-3AA1

7MB2335-0SW10-3AA1

7MB2335-0PW10-3AA1

7MB2335-0AJ00-3AA1

7MB2335-0CJ00-3AA1

7MB2335-0DJ00-3AA1

7MB2335-0FJ00-3AA1

7MB2335-0MJ00-3AA1

7MB2335-0NJ00-3AA1

7MB2335-0SJ00-3AA1

7MB2335-0PJ00-3AA1

7MB2335-0UJ00-3AA1

7MB2335-0VJ00-3AA1

7MB2335-0MW10-3AA1

7MB2335-0NW10-3AA1

7MB2335-0AJ10-3AA1

7MB2335-0CJ10-3AA1

7MB2335-0DJ10-3AA1

7MB2335-0FJ10-3AA1

7MB2335-0MJ10-3AA1

7MB2335-0NJ10-3AA1

7MB2335-0SJ10-3AA1

7MB2335-0PJ10-3AA1

7MB2335-0UJ10-3AA1

7MB2335-0VJ10-3AA1

7MB2335-0AX00-3AA1

7MB2335-0AK00-3AA1

7MB2335-0CK00-3AA1

7MB2335-0DK00-3AA1

7MB2335-0FK00-3AA1

7MB2335-0MK00-3AA1

7MB2335-0NK00-3AA1

7MB2335-0SK00-3AA1

7MB2335-0PK00-3AA1

7MB2335-0UK00-3AA1

7MB2335-0VK00-3AA1

7MB2335-0UW10-3AA1

7MB2335-0VW10-3AA1

7MB2335-0AK10-3AA1

7MB2335-0CK10-3AA1

7MB2335-0DK10-3AA1

7MB2335-0FK10-3AA1

7MB2335-0MK10-3AA1

7MB2335-0NK10-3AA1

7MB2335-0SK10-3AA1

7MB2335-0PK10-3AA1

7MB2335-0UK10-3AA1

7MB2335-0VK10-3AA1

7MB2335-0DX00-3AA1

7MB2335-0FX00-3AA1

7MB2335-0AL00-3AA1

7MB2335-0CL00-3AA1

7MB2335-0DL00-3AA1

7MB2335-0FL00-3AA1

7MB2335-0ML00-3AA1

7MB2335-0NL00-3AA1

7MB2335-0SL00-3AA1

7MB2335-0PL00-3AA1

7MB2335-0UL00-3AA1

7MB2335-0VL00-3AA1

7MB2335-0CX00-3AA1

7MB2335-0AL10-3AA1

7MB2335-0CL10-3AA1

7MB2335-0DL10-3AA1

7MB2335-0FL10-3AA1

7MB2335-0ML10-3AA1

7MB2335-0NL10-3AA1

7MB2335-0SL10-3AA1

7MB2335-0PL10-3AA1

7MB2335-0UL10-3AA1

7MB2335-0VL10-3AA1

7MB2335-0SX00-3AA1

7MB2335-0PX00-3AA1

7MB2335-0AM00-3AA1

7MB2335-0CM00-3AA1

7MB2335-0DM00-3AA1

7MB2335-0FM00-3AA1

7MB2335-0MM00-3AA1

7MB2335-0NM00-3AA1

7MB2335-0SM00-3AA1

7MB2335-0PM00-3AA1

7MB2335-0UM00-3AA1

7MB2335-0VM00-3AA1

7MB2335-0MX00-3AA1

7MB2335-0NX00-3AA1

7MB2335-0AM10-3AA1

7MB2335-0CM10-3AA1

7MB2335-0DM10-3AA1

7MB2335-0FM10-3AA1

7MB2335-0MM10-3AA1

7MB2335-0NM10-3AA1

7MB2335-0SM10-3AA1

7MB2335-0PM10-3AA1

7MB2335-0UM10-3AA1

7MB2335-0VM10-3AA1

7MB2335-0AW00-3AA1

7MB2335-0AN00-3AA1

7MB2335-0CN00-3AA1

7MB2335-0DN00-3AA1

7MB2335-0FN00-3AA1

7MB2335-0MN00-3AA1

7MB2335-0NN00-3AA1

7MB2335-0SN00-3AA1

7MB2335-0PN00-3AA1

7MB2335-0UN00-3AA1

7MB2335-0VN00-3AA1

7MB2335-0VX00-3AA1

7MB2335-0AV10-3AA1

7MB2335-0AN10-3AA1

7MB2335-0CN10-3AA1

7MB2335-0DN10-3AA1

7MB2335-0FN10-3AA1

7MB2335-0MN10-3AA1

7MB2335-0NN10-3AA1

7MB2335-0SN10-3AA1

7MB2335-0PN10-3AA1

7MB2335-0UN10-3AA1

7MB2335-0VN10-3AA1

7MB2335-0FX10-3AA1

7MB2335-0UX00-3AA1

7MB2335-0AP00-3AA1

7MB2335-0CP00-3AA1

7MB2335-0DP00-3AA1

7MB2335-0FP00-3AA1

7MB2335-0MP00-3AA1

7MB2335-0NP00-3AA1

7MB2335-0SP00-3AA1

7MB2335-0PP00-3AA1

7MB2335-0UP00-3AA1

7MB2335-0VP00-3AA1

7MB2335-0CX10-3AA1

7MB2335-0DX10-3AA1

7MB2335-0AP10-3AA1

7MB2335-0CP10-3AA1

7MB2335-0DP10-3AA1

7MB2335-0FP10-3AA1

7MB2335-0MP10-3AA1

7MB2335-0NP10-3AA1

7MB2335-0SP10-3AA1

7MB2335-0PP10-3AA1

7MB2335-0UP10-3AA1

7MB2335-0VP10-3AA1

7MB2335-0AU00-3AA1

7MB2335-0AQ00-3AA1

7MB2335-0CQ00-3AA1

7MB2335-0DQ00-3AA1

7MB2335-0FQ00-3AA1

7MB2335-0MQ00-3AA1

7MB2335-0NQ00-3AA1

7MB2335-0SQ00-3AA1

7MB2335-0PQ00-3AA1

7MB2335-0UQ00-3AA1

7MB2335-0VQ00-3AA1

7MB2335-0NX10-3AA1

7MB2335-0SX10-3AA1

7MB2335-0AQ10-3AA1

7MB2335-0CQ10-3AA1

7MB2335-0DQ10-3AA1

7MB2335-0FQ10-3AA1

7MB2335-0MQ10-3AA1

7MB2335-0NQ10-3AA1

7MB2335-0SQ10-3AA1

7MB2335-0PQ10-3AA1

7MB2335-0UQ10-3AA1

7MB2335-0VQ10-3AA1

7MB2335-0PX10-3AA1

7MB2335-0MX10-3AA1

7MB2335-0AR00-3AA1

7MB2335-0CR00-3AA1

7MB2335-0DR00-3AA1

7MB2335-0FR00-3AA1

7MB2335-0MR00-3AA1

7MB2335-0NR00-3AA1

7MB2335-0SR00-3AA1

7MB2335-0PR00-3AA1

7MB2335-0UR00-3AA1

7MB2335-0VR00-3AA1

7MB2335-0AU10-3AA1

7MB2335-0UX10-3AA1

7MB2335-0AR10-3AA1

7MB2335-0CR10-3AA1

7MB2335-0DR10-3AA1

如您需要其他型号的分析仪产品，请及时与我们联系，上海菁园科技有限公司欢迎您的来电。
